BF-SCP860 Multimode Radio

OEM/ODM
The BF-SCP860 is an all-in-one multimode radio that embraces broadband & narrowband communication and smartphone functionality. Allowing conventional communication, DMR Trunking, and PoC, this radio provides a reliable communication guarantee for critical voice communication. With audio, video, multi-media dispatch, and other rich applications, it helps to improve response efficiency and enhance visual management capabilities.
Inquiry
Inquiry
BF-SCP860
Multimode Radio
Inquiry

Highlights

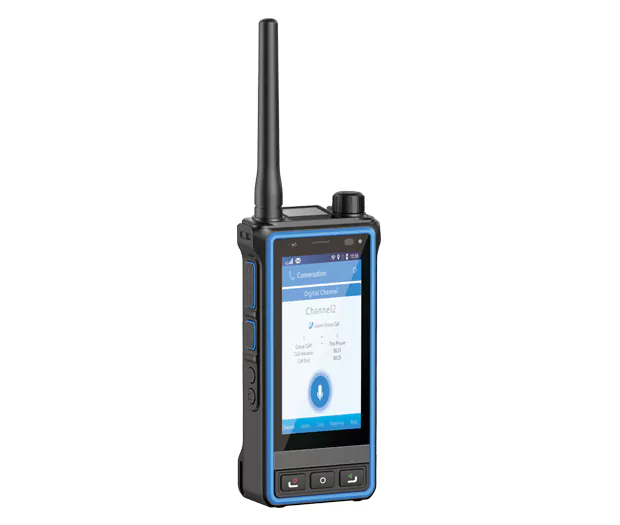

Double Screen Display

BF-SCP860 incorporates a unique dual-screen interactive design. With a 4.0-inch 1080P screen, it brings a more intuitive visual effect and remains clear visibility even when operating in strong light. Its glove operation and wet-hand operation, made it more convenient for outdoor operations.

Integrated Broadband & Narrowband Communication

The BF-SCP860 featured an automatic public-private network switching. In private network mode, it can interconnect with DMR, Analog, and other narrowband terminals. In public network mode, it works with the BelFone ProChat IoT system and enables unlimited audio and video communication, which can extend narrowband coverage, and guarantee rapid network establishment.

Trunking Communication

BF-SCP860 multi-mode radio featured enhanced Trunking performance and wide system/terminal compatibility, providing reliable critical services for transportation, communication, power cut-off and other disconnecting areas.

Dual-Transmission

The BF-SCP860 adopts a dual PTT design, allowing users to customize public-private network priority, bring seamless broadband and narrowband communication. With a 5W transmission power and advance audio processing technology, it further extends private network coverage and enhances audio quality.

Comprehensive Positioning

BF-SCP860 supports GPS/GLONASS/Galileo, cellular-based positioning, and WIFI assisted positioning, catering positioning demands in outdoor, indoor, underground, and tunnel environments.
Note: Factory default GPS.

Front and Rear Dual Camera

Equipped with 13MP and 8MP dual HD cameras, the BF-SCP860 delivers 1080P clear images, capturing every critical moment. Its VoLTE feature provides high-definition audio/video call services for better audio and video integration.

Rugged and Durable

Designed with durable industrial-grade plastic material and certificate IP68 protection, the BF-SCP860 is a rugged radio with all-round protection that can withstand a 1.5m drop without damage and endures operating environments ranging from -30ºC-60ºC. It provides stable and seamless communications even in complex environments such as rain, snow, heat, and humidity.

Rich Applications

The BF-SCP860 comes with the Android 11 operating system, providing increased security, stability, and compatibility. It can flexibly adapt to third-party applications, effectively expand data, video, and IoT smart applications, catering to various communications demands and enhancing business processing capabilities.

Specifications

Wireless Data Communication
Frequency Range VHF:136-174MHZ
UHF:400-470MHZ/UHF:350-400MHZ
Public Network Frequency Band TDD-LTE: B38/39/40/41
FDD-LTE: B1/3/5/8
WCDMA: B1/5/8
EVDO: BC0
CDMA: BC0
WLAN Support 802.11 b/g/n/ac, 2.4G
BT Support BT4.2
NFC Support
Positioning GPS/Beidou/GLONASS/Galileo
General specifications for private networks
Working mode Digital compatible analog
Channel spacing 12.5KHz/25KHz
Zones 128
Channel capacity 100
Contact Regular 1024, Trunking 512
Receiving group Regular 1024, Trunking 50
RF output power <5W
Environmental
Working Temperature -20℃—+60℃
Storage Temperature -30℃—+70℃
Protection Grade IP68
General
Memory (RAM+ROM) 4GB+64GB
SDextended storage 256GB Max
Operating system Android 11
Display screen 4.0 inches, 1080 * 540 resolution, supports glove touch
Card slot 2x Nano SIM card
1x Micro SD card
Camera Front: 8 million pixels
Rear: 13 million pixels
Operating Voltage 7.6V(Rated)
Battery Standard configuration: 2400mAh (thin battery)
Optional: 3500mAh (thick battery)
Removable
Compass Support
Gyroscope Support
Vibration function Support
Recording Support
Dimensions (L×W×H) 67(L)* 28(W)* 152 (H)mm
Weight 380g(include battery)
